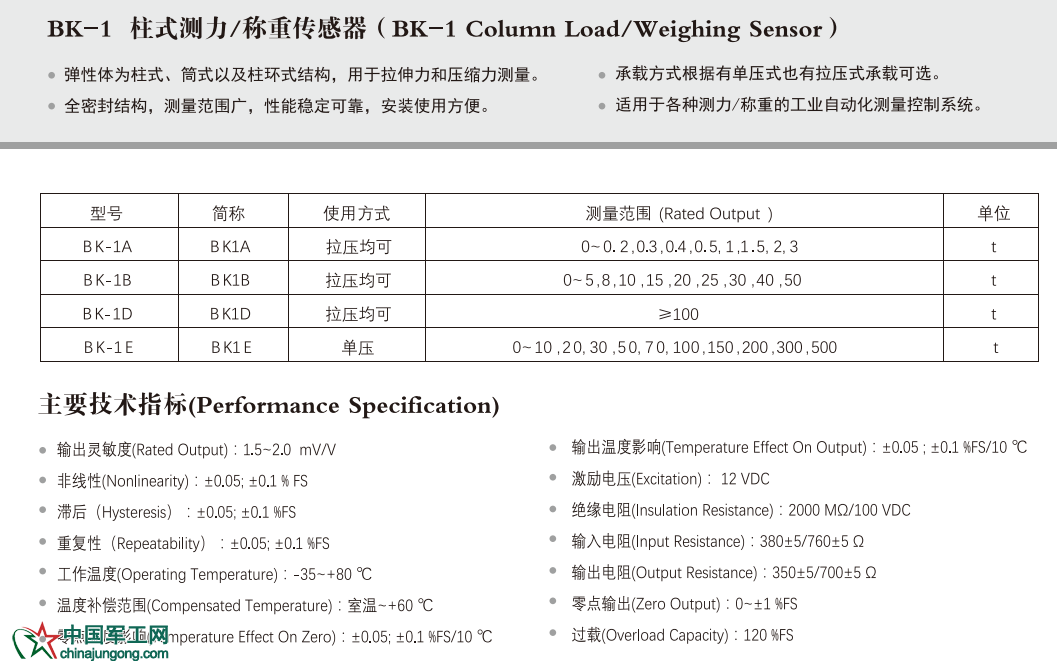

主要技術指標（Performance Specification）
?● 輸出溫度影響（Temperature Effect On Output）∶±0.05;±0.1%FS/10 ℃
● 輸出靈敏度（Rated Output）∶1.5~2.0 mV/V
● 激勵電壓（Excitation）∶12 VDC?
● 非線性（Nonlinearity）∶±0.05;±0.1% FS?·絕緣電阻（Insulation Resistance）∶2000 MO/100 VDC
● 滯后（Hysteresis）∶±0.05;±0.1%FS
?● 輸入電阻（Input Resistance）∶380±5/760±5 Q
● 重復性（Repeatability）∶±0.05;±0.1%FS
●工作溫度（Operating Temperature）∶-35~+80 ℃
●輸出電阻（Output Resistance）∶350±5/700±5 Q
● 零點輸出（Zero Output）∶0~±1%FS?溫度補償范圍（Compensated Temperature）∶室溫~+60℃
?●過載（Overload Capacity）∶120 %FS?
